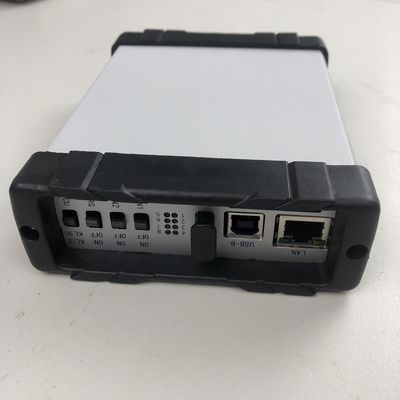

For Transmission ZF Testman Diagnosis and Detection Tool Programming DPA06 Latest ZF-Testman Development Diagnostic Scanner
Datos del producto
| Nombre del modelo | Para el kit de diagnóstico de transmisión ZF | Calidad | Superior |
|---|---|---|---|
| Tipo de artículo | Analizador de motores | Nombre del producto | Para el kit de diagnóstico ZF (DPA06) |
| Tipo | Cables y conectores de diagnóstico para automóviles | Versión de hardware | Nueva versión |
| Resaltar | Escáner de diagnóstico ZF Testman,herramienta de escaneo de transmisión DPA06,Herramienta de programación ZF-Testman |
||
Descripción de producto
For Transmission ZF Testman Diagnosis and Detection tool Programming DPA06 Latest ZF-Testman Development diagnostic scanner

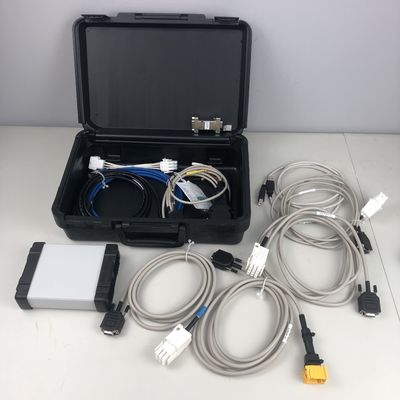

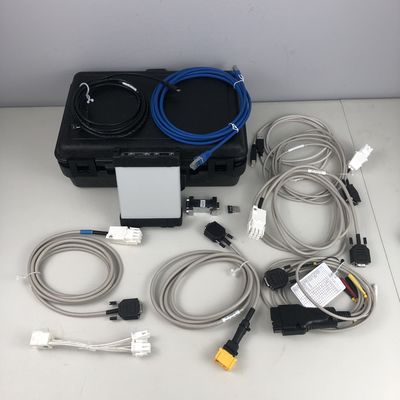

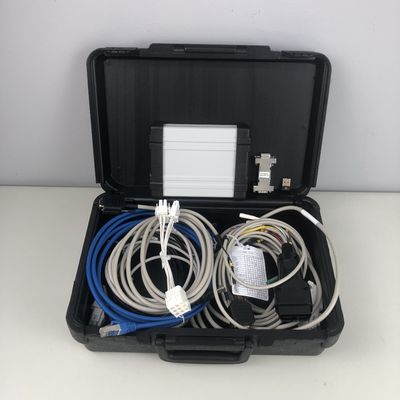

| Package list: |
|

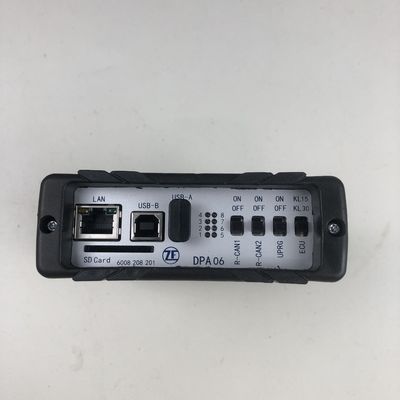

1*DPA06 Interface |
Description:
ZF-Testman Pro checks the functionality of all electronically controlled ZF products. All transmission-specific data required for a fast and comprehensive diagnosis are retrievable by the ZF diagnosis system Testman.
The ZF Testman Pro program is software that has reference information for testing and diagnosing equipment that is installed on passenger cars, light commercial trucks, as well as trucks, buses, and specialized vehicles.
The transmission-specific data required for a fast and comprehensive diagnosis are retrievable by the ZF diagnosis system Testman.ZF-Testman Pro checks the functionality of all electronically controlled ZF products.
The ZF-Testman works with trucks and buses equipped with gearboxes: eTronic, Astronic, WSK EST 41/61, Ecomat, Intarder, AVS, it also has programming functions.Also, The ZF-Testman works with light commercial trucks equipped with gearboxes: ZF Servocomtronic, ZF Servocom RAS-EC; with passenger cars: ZF Active Steering, EHPS, ZF Servolectric, ZF Servotronic.Applicable for special equipment with gearboxes: T557 EST57A, Ergopower, HC 85, T7000, Eccom.
The ZF Testman Pro program is software that has reference information for testing and diagnosing equipment that is installed on passenger cars, light commercial trucks, as well as trucks, buses, and specialized vehicles.
The transmission-specific data required for a fast and comprehensive diagnosis are retrievable by the ZF diagnosis system Testman.ZF-Testman Pro checks the functionality of all electronically controlled ZF products.
The ZF-Testman works with trucks and buses equipped with gearboxes: eTronic, Astronic, WSK EST 41/61, Ecomat, Intarder, AVS, it also has programming functions.Also, The ZF-Testman works with light commercial trucks equipped with gearboxes: ZF Servocomtronic, ZF Servocom RAS-EC; with passenger cars: ZF Active Steering, EHPS, ZF Servolectric, ZF Servotronic.Applicable for special equipment with gearboxes: T557 EST57A, Ergopower, HC 85, T7000, Eccom.
Additional functions:
- System check standstill and System-check run3
- Indication of all digital and analog values such as speeds, currents, and voltages
- Read and delete error memory
- Read identification block and etc.
We provide online support and activation with Teamview!
1. Comm.Vehicle/Special Transmissions
2. Marine Propulsion Systems
3. Steering Systems
Supported commercial vehicle/special transmissions:
• ASTRONIC (1, 2, mid, lite, lite test rig, 2 assembly inspection, 2 test rig)
• ECOMAT (1, 2/4, HP 260 CAN-Converter)
• INTRADER (EST32, EST42/48)
• AVS
• eTRONIC
• WSK EST 41/61
Supported marine propulsion systems:
• BW
- System check standstill and System-check run3
- Indication of all digital and analog values such as speeds, currents, and voltages
- Read and delete error memory
- Read identification block and etc.
We provide online support and activation with Teamview!
1. Comm.Vehicle/Special Transmissions
2. Marine Propulsion Systems
3. Steering Systems
Supported commercial vehicle/special transmissions:
• ASTRONIC (1, 2, mid, lite, lite test rig, 2 assembly inspection, 2 test rig)
• ECOMAT (1, 2/4, HP 260 CAN-Converter)
• INTRADER (EST32, EST42/48)
• AVS
• eTRONIC
• WSK EST 41/61
Supported marine propulsion systems:
• BW
Supported commercial vehicle steering systems:
• ZF Servocom RAS-EC (RAS-EC ISO, RAS-EC KWP)
• ZF Servocomtronic (Servotronic F)
Supported automobile car steering systems:
• EHPS (BMW R50, OPEL EP2)
• ZF Servolectric (BMW E85, APA E72, APA E90, VW PQ35/45 + Audi TT, VW PQ35-3)
• ZF Active Steering (BMW E60 PL1, E70 PL4, E90 PL2)
• ZF Servotronic (Servotronic F)
Supported off-road driveline technology and asle systems:
• ERGOPOWER (WG110-WG311, 2-3 WG-94, EST 117/125 - 119/126)
• T7000 (T7100 EST38, T7200 EST38, T7300 EST38, T7000 EST45/57/57A/ PVS LS EST57A)
• ECCOM (John Deere, Claas)
• T557 EST57A
• HC 85
• ZF Servocom RAS-EC (RAS-EC ISO, RAS-EC KWP)
• ZF Servocomtronic (Servotronic F)
Supported automobile car steering systems:
• EHPS (BMW R50, OPEL EP2)
• ZF Servolectric (BMW E85, APA E72, APA E90, VW PQ35/45 + Audi TT, VW PQ35-3)
• ZF Active Steering (BMW E60 PL1, E70 PL4, E90 PL2)
• ZF Servotronic (Servotronic F)
Supported off-road driveline technology and asle systems:
• ERGOPOWER (WG110-WG311, 2-3 WG-94, EST 117/125 - 119/126)
• T7000 (T7100 EST38, T7200 EST38, T7300 EST38, T7000 EST45/57/57A/ PVS LS EST57A)
• ECCOM (John Deere, Claas)
• T557 EST57A
• HC 85
Diagnose:
• Current errors;
• Read error memory;
• Delete error memory;
• Read identification block;
• Vehicle data sheet;
• Current errors;
• Read error memory;
• Delete error memory;
• Read identification block;
• Vehicle data sheet;
Test Inputs and Outputs:
• System-check standstill;
• System-check run;
• Test unit (indication of all digital inputs and outputs);
• Indication of all digital and analog values such as speeds, currents and voltages;
Repair support:
• Tightening torques;
• Setting data;
• Special tools;
• Test equipment;
• Maintenance;
• Repair work;
• Pressures;
• Circuit diagrams;
• Electrical readouts;
• PDF format;
Language: English, German, French, Spanish, Italian, Portuguese.
