Lonsdor KH100+ Remote Key Programmer with 902MHZ Support and Toyota 8A Smart Key Direct Copy

Lugar de origen	PORCELANA
Nombre de la marca	LONSDOR KH100+
Número de modelo	LONSDOR KH100+
Cantidad de orden mínima	1
Tiempo de entrega	1 día de trabajo
Condiciones de pago	T/T, Western Union, Moneygram
Capacidad de la fuente	1000

Éntreme en contacto con gratis las muestras y los vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

Datos del producto

Nombre del modelo	LONSDOR KH100+	Origen	China continental
Calidad	Superior	Característica especial	Programador de llave remota KH100+
Tipo de artículo	Herramienta de programación de llaves Lonsdor KH100+	Función 1	copia de chip; tarjeta IC/ID; emulación de chip; generación de chip
Función 2	generación de claves; reconocimiento de bobina; detección de frecuencia; función especial	Función 3	edición y generación remota de código fijo
Función 4	copia de código fijo; llave de puerta de garaje	Función 5	soporte WIFI en línea trabajando
Promesa	100% original
Resaltar	902MHZ Remote Key Programmer , Toyota 8A Smart Key Direct Copy Key Programmer , Exclusive 8A(H chip) generation Key Programmer

Deja un mensaje

Descripción de producto

Lonsdor KH100+ Hand-Held Remote Key Programmer without Remote Key Package Update Version of KH100

Lonsdor KH100+ Highlights:

1. Modern appearance design, in line with the operating habits of the public.
2. Device system comes with operation instructions, easier for you to use.
3. It covers almost all the functions of the similar products in the market.
4. Built-in super sensor to collect data(over-range data collection).
5. Exclusive support for 8A(H chip) generation.
6. Built-in WIFI module, can connect to network at any time
7. 4-pack remotes & smart key involved
8. Handy chip holder integrated, 902MHZ supported
9. For Toyota 8A Smart Key Direct copy to Add key (Latest Update)

Identify/Copy/Generate Chip:
Multi-vendor chips supported
Especially for Toyota 8A(H) chip Our predominance

Simulate Chip:
Able to simulate 4D/46/48 chips
With built-in super sensory data collector(no interference within 1 meter when collecting data)

Generate Remote/Smart key:
Dedicated connector to generate remote/smart key Online update supported
Remote generation diagram

Smart Key Generation Diagram

Dedicated Connector to Generate Remote Key:PS2-7Pin OD3.5

Access Control/Remote Frequency
One-click identify and copy IC/ID cards
Copy multi-vendor chops
Detect remote frequency bands with high accuracy
One click identify ID card,able to copy multi-vendor chps,at the back sensor area

Detect Super Frequency
Detect multiple frequency brands with high accuracy

Identify Coil:
1) Search smart induction area Connect remote key with remote connector, Put KH100+'s antenna close to the pre-determined position. If inductive signal is identified, the device will continuously make sounds, please check if the position is right(as shown below).
2) Detect IMMO Connect remote key with remote connector, Put KH100+'s antenna close to key identification coil, and use key to turn ignition ON. When KH100+ buzzer beeps, it means signal is detected.

Remote Frequency
Enter this menu, put remote control at the device’s induction area to detect remote frequency.

Lonsdor KH100+ Special Function:

Include: detect infrared signal, unlock for Toyota smart key, More functions, to be continued...

1. Detect Infrared Signal
Put remote control at the infrared signal detection area, press the remote's button once. When the light on KH100's screen is on, it indicates there is infrared signal, otherwise there is no signal (see below pic).

2. FT Smart Key
For Toyota or Lexus smart keys from Lonsdor, you can perform the following functional operations: read version info, modify key value, unlock and upgrade program and etc. Put in the smart key, click [select] to operate.

3. Unlock for Toyota Smart Key/Detect for Toyota Key Status
Put in the smart key, click OK to operate.

4. Charge Key
For a chargeable key with battery, you can perform this function. Put in the key, click [OK] to operate.

Lonsdor KH100+ Registration Guide:

Note: After booting the device, please connect to WIFI and enter the following process.
New User
1) For the first use, please prepare a common call phone or email to help complete activation process, click OK to start.
2) Boot the device and enter registration activation process.
3) Input user name, password. Confirm password, cell phone number or email to obtain verification code. Then input the code to submit registration.
4) Account registered successfully, it will take 5 seconds to bind the device.
5) Successful registration, enter the system.

Registered User (who has registered Lonsdor products before)
1) For the first use, please prepare a registered call phone or email to help complete activation process, click OK to start.
2) Boot the device and enter registration activation process.
3) Input your registered mobile number or email, password to obtain verification code. Then input the code to submit login.
4) Account login succeeded, it will take 5 seconds to bind the device.
5) Successful registration, enter the system.

In addition, users who have already registered Lonsdor's product can directly choose [registered user] to activate account.

How to update Lonsdor KH100+:

Enter settings menu
Connect the device to network
Then choose [check for updates]
One-click for online update!

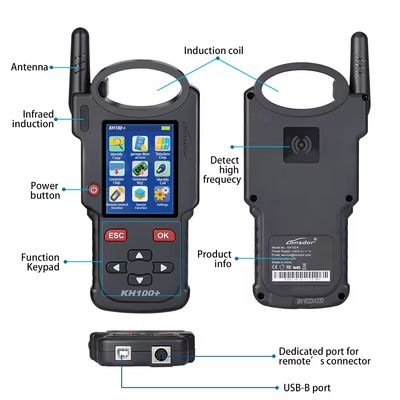

Name	Notes
Antenna	To induce simulated chip and detect ignition coil
Display screen	2.8-inch color screen, resolution: 320X480
Induction coil	To identify, copy, generate key chip or remote, etc.
Port 1	USB-B port
Port 2	Dedicated port for remote’s connector
Power button	In shut-down state, tap to boot the device. In power-on state, tap to switch to power saving mode. Long press for 3s to shut down
Remote frequency detection	Put remote in this position to detect its frequency.
High-frequency detection	To identify and copy IC card.

Lonsdor KH100+ Function List:

Identify Copy
Chip Simulation
Remote Generation
Remote Frequency
Access Control Key
Chip Generation
Coil Identification
Special Function

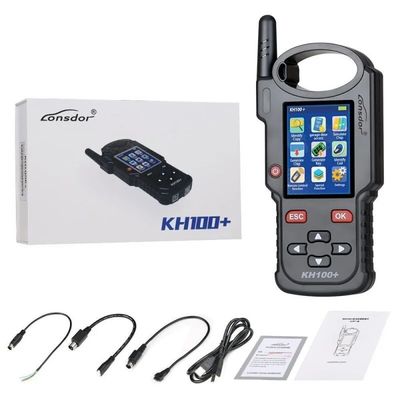

Packing List

1pc x Lonsdor KH100+ Hand-Held Remote Key Programmer

1pc x USB cable

3pcs x remote programming cables

1pc x manual

1pc x product certificate card

Lonsdor KH100+ Remote Key Programmer with 902MHZ Support and Toyota 8A Smart Key Direct Copy 13
