OBDSTAR D800 A Configuration Marine Diagnostic Tool for Jetski

Lugar de origen China
Nombre de la marca OBDSTAR D800
Número de modelo para Jetski
Cantidad de orden mínima Uno.
Precio 1980$
Detalles de empaquetado 51cm*39.5cm*17cm/6.9kg
Tiempo de entrega 1 día laborable
Condiciones de pago T/T, dinero en gramo
Capacidad de la fuente En stock

Éntreme en contacto con gratis las muestras y los vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Nombre del modelo Obstáculo de trabajo Origen China continental
Calidad Superior Tipo de artículo Analisador del motor
El tipo Cables y conectores de diagnóstico para automóviles Paquete Caja de papel de embalaje estándar
Condiciones de envío DHL,EMS,TNT,UPS,FEDEX y otros El color Como demostración de la foto
garantía Un año
Resaltar

A Configuration OBDSTAR D800

,

Marine OBDSTAR D800

,

Jetski OBDSTAR D800

Deja un mensaje
Descripción de producto

Product Description

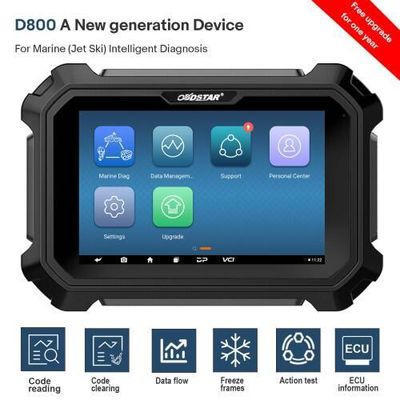

OBDSTAR D800 Configuration A is OBDSTAR's new generation device for marine (jet ski) intelligent diagnosis.
2023 Newest OBDSTAR D800 Configuration A for Marine (Jet Ski) Intelligent Diagnostic Scanner

Notice:
OBDSTAR D800 A is out of stock, Please choose
OBDSTAR D700 A for Jetski Intelligent Marine Scanner to replace it.


D800 four configurations

D800 A: Jetski
D800 A+B: Jetski, Outboard
D800 C+D: Inboard, Generator
D800 A+B+C+D: Jetski, Outboard, Inboard, Generator


OBDSTAR D800 A Configuration Marine Diagnostic Tool for Jetski 0
OBDSTAR D800 A Configuration Marine Diagnostic Tool for Jetski 1

Functions

1. New android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including ECU information, code reading, code clearing, data flow, freeze frames, action test, setting, coding etc;
4. Record and play back real-time flow, quickly and accurately locate sensor and component faults;
5. Wi-Fi connection to the internet, one-click software upgrade;
6. One-click remote function, OBDSTAR technical staff remote assistance.

Advanced Function

1. The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletin, manual service function(service lamp reset), basic parameters, etc., working with D800 to make marine diagnosis more accurately and efficiently (some functions are only available for D800 users to check for free);
2. The exclusive interactive wiring diagram and electrical appliance description query function make your diagnosis worry-free;
3. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to easily analyse faults;
4. Auto Scan, Active Trim Configuraion, Active Trim GPS Configuraion, Auxiliary Joystick Congfiguration, BCM Simulator, Compass Congfiguration, Device Initialization, Drive Alignment, Helm Setup, Instance Setting, Maintenance Setting, Merc TDS Reset, Remote Control Reset, Set Engine Location, Set Tach Link, Set Tilt Limit, SMUX Congfiguration, Steeing Wheel Centering, Syetem Calibration, Torque Ajustment, Trackpad Configuration, Vessel Personality, and other functions.

Supported Brands

EVINRUDE, HONDA, JOHNSON, KAWASAKI, MARINER, MERCURY/MERCURY RACING, PARSUN, SEA-DOO(BRP), SELVA MARINE, SEVEN MARINE, SUZUKI, TOHATSU, YAMAHA...

Optional Brands

CATERPILLAR, CFMOTO, CRUSADER ENGINES, CUMMINS MARINE, CUMMINS MERCRUISER DIESEL, DAEDONG, DAF MARINE, FNM MARINE, FORD MARINE, FPT (Fiat Powertrain Technologies), HYUNDAI SEASALL, ILMOR, INDMAR, JOHN DEERE MARINE, KODIAK MARINE, KOHLER POWER SYSTEMS, LOMBARDINI MARINE, MAN MARINE, MARINE POWER, MTU, PANTHER AIRBOATS, PCM Marine Engines, PERKINS, SCANIA MARINE, SISU, STEYR MOTORS, TOYOTA MARINE, VM MOTORI, VOLKSWAGEN MARINE, VOLVO PENTA, YANMAR...

More functions are under development...

Specification:
Operation system Android 5.1.1
CPU Exynos4418 qual core ARM cortex A9
Battery 3700mA, rechargeable polymer lithium battery
Extension memory card 32G micro SD (TF) card supported
Storage capacity 32GB
LCD 8.0 inch
LCD resolution 1280*800
Touch screen Capacitive touch screen
Wifi Supported
Camera 5 mega rear view camera
Working temperature -10℃~55℃ (14℉~131℉)
Storage temperature -20℃~70℃ (-4℉~158℉)
Weight 1kg (main unit)
Dimension 254mm*174mm*35mm

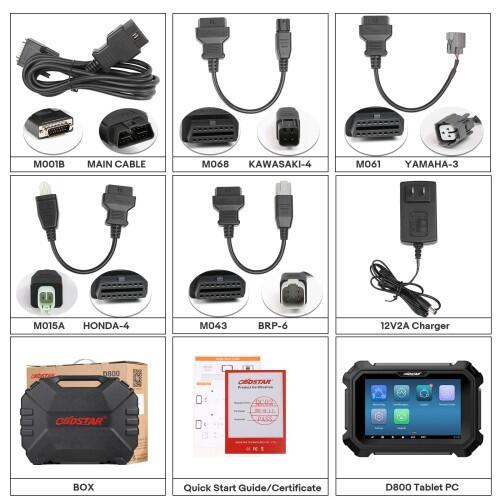

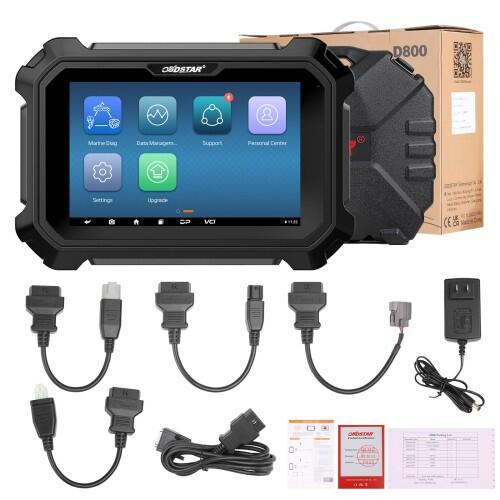

Package List:

1 set x OBDSTAR D800 Configuration A
1pc x box
1pc x M001B main cable
1pc x M015A Honda-4
1pc x M043 BRP-6
1pc x M061 Yamaha-3
1pc x M068 Kawasaki-4
1pc x 12V2A charger
1pc x quick start guide/ certificate
