OBDSTAR MS50 Motorcycle Scanner Motorbike Diagnostic Tool Free Update Online
| Lugar de origen | China |
|---|---|
| Nombre de la marca | OBDSTAR MS50 |
| Número de modelo | Versión completa |
| Cantidad de orden mínima | Uno. |
| Precio | 549$ |
| Detalles de empaquetado | 44.8cm*34cm*13.2cm/4.3kg |
| Tiempo de entrega | 1 día laborable |
| Condiciones de pago | T/T, dinero en gramo |
| Capacidad de la fuente | En stock |
Éntreme en contacto con gratis las muestras y los vales.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Nombre del Modelo | OBDSTAR MS50 | Origen | China continental |
|---|---|---|---|
| Calidad | Superior | Tipo de artículo | Analisador del motor |
| El tipo | Cables y conectores de diagnóstico para automóviles | Paquete | Caja de papel de embalaje estándar |
| Condiciones de envío | DHL,EMS,TNT,UPS,FEDEX y otros | El color | Como demostración de la foto |
| garantía | Un año | ||
| Resaltar | OBDSTAR Motorbike Diagnostic Tool,Motorcycle Diagnostic Tool Free Update,OBDSTAR MS50 Motorcycle Scanner |
||
Descripción de producto
Product Description

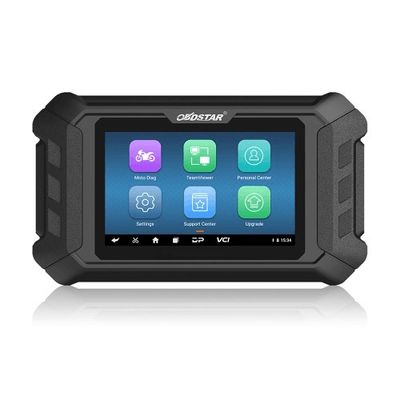

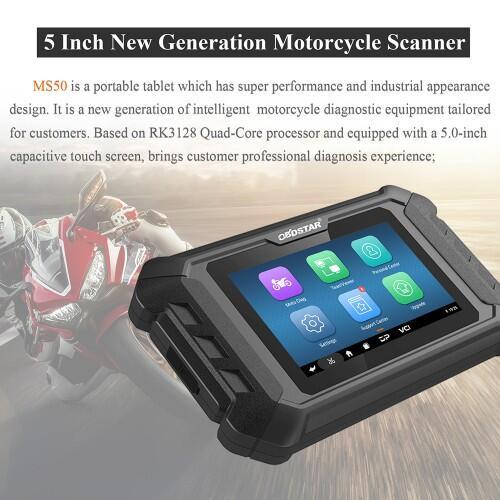

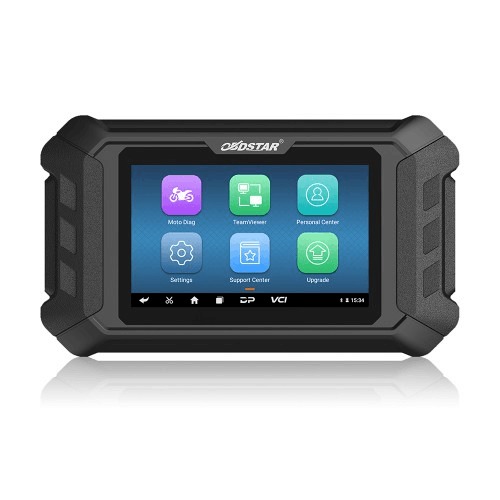

OBDSTAR MS50 is a portable tablet which has super performance and industrial appearance design. It is a new generation of intelligent motorcycle diagnostic equipment tailored for customers. Based on RK3128 Quad-Core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience.
OBDSTAR MS50 Intelligent Motorcycle Diagnostic ToolOBDSTAR MS50 is a portable tablet which has super performance and industrial appearance design. It is a new generation of intelligent motorcycle diagnostic equipment tailored for customers. Based on RK3128 Quad-Core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience;
OBDSTAR MS50 Features:
1. New Android 5.1.1 operation system
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;

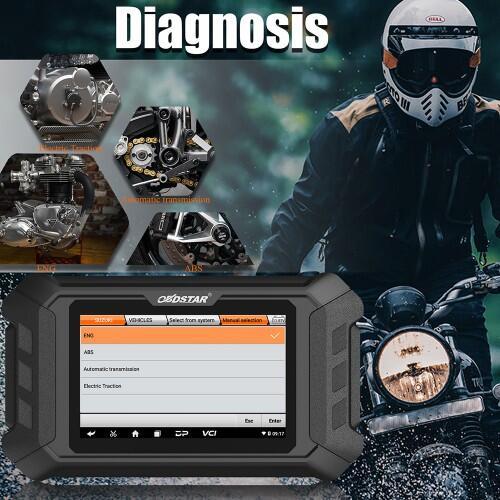

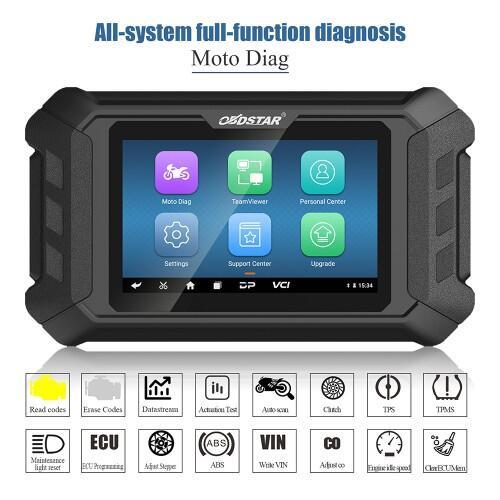

3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding, etc.;
4. Menu Arbitrary selection is more convenient and quick;
5. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the Internet, one-click software upgrade;
7. One-Click remote function, OBDSTAR technical staff remote assistance;
8. Support most of the Asia and Europe models;
9.OBDSTAR MS50 Supported car list.
Notice: Support English only, can't change language.
OBDSTAR MS50 Advanced Function:
1. The first fault guidance, Help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;
2. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting , EOL mode, transmission memory reset, clear computer memory, etc.
Motorcycle/Snowmobile/ATV/UTV Support Car Series:
Asia:
Honda,Kawasaki,Kymco,Suzuki,SYM,Yamaha,PGO,Hardford,AEON；
Europe:
Benelli,KTM,Piaggio,Vespa
More functions under developing...
Different configurations include different software. For details, please contact OBDSTAR.
Function Display:
1) Main Page/Brand Supported
2) Help Data/Technical Bulletin/Fault Guidance
3)Supported System List/ Manual Service Function
4) Manual maintenance reset
5) Diag socket/Diag Connector Location
6) Data Flow Text/ Waveform Diagram/Instrument Diagram
7)Special Function-Benelli
8) Special Function-KTM
9) Special Function-Piaggio
10) Special Function-Vespa
OBDSTAR MS50 Latest Update Information:
KYMCO DIAG UPGRADE【V30.10】UPGRADE on Jul 30th, 2022
MS50 BAJAJ [V30.00] UPGRADE on Mar 30th, 2021:
| Brand | Model | Year | System |
| BAJAJ | Ninja 650R | 2006-2011 | ENG |
| 2012- | ENG | ||
| Ninja 300 | 2013- | ENG | |
| Pulsar 200 NS | 2014- | ENG | |
| ABS | |||
| Pulsar 200 NS | ENG | ||
| ABS | |||
| Pulsar FF 200 | ENG | ||
| ABS | |||
| Pulsar RS 200 | ENG | ||
| ABS | |||
| Pulsar 150 | 2014-2016 | ENG | |
| Dominar 400 | 2016- | ENG | |
| ABS | |||
| Pulsar LS | 2017- | ENG | |
| Pulsar NS160 | ENG | ||
| ABS |
MS50 ENFIELD[V30.00] UPGRADE on Mar 30th, 2021
| Brand | Model | Year | System |
| ENFIELD | Interceptor | 2018- | ENG |
| ABS | |||
| Continental GT | ENG | ||
| ABS | |||
| 2014-2017 | ENG | ||
| Bullet 500 EFI | 2009- | ABS | |
| ENG | |||
| BUullet Electra | ABS | ||
| ENG | |||
| Classic | ENG | ||
| Himalayan | 2016- | ABS | |
| ENG |
Product Parameters
Operation System: Android 5.1.1
CPU: Exynos4418 Dual Core ARM Cortex A9
Battery: 2500mA, rechargeable polymer lithium battery
Extension memory card: 32G Micro SD (TF) card supported
Storage capacity: 16GB
LCD:5.0 inch
LCD resolution: 800*600
Touch screen: capacitive touch screen
Wifi: supported
Camera: 5 mega rear view camera
Working temperature: -20℃～55℃(14℉～131℉)
Storage temperature: -20℃～70℃(-4℉～158℉)
Weight: 700g(Main Unit)

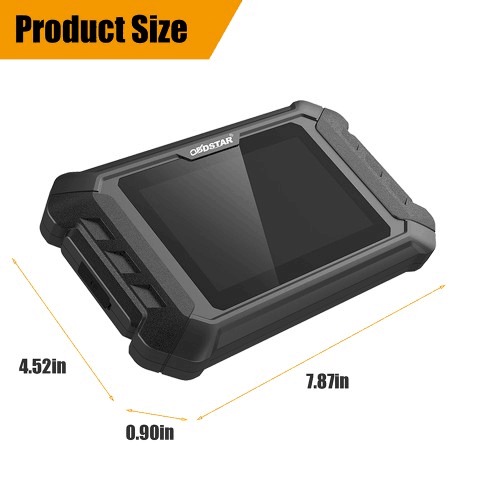

Dimension: 140mm*89mm*18mm

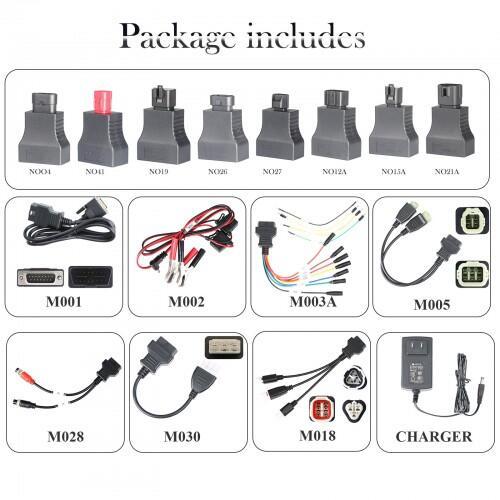

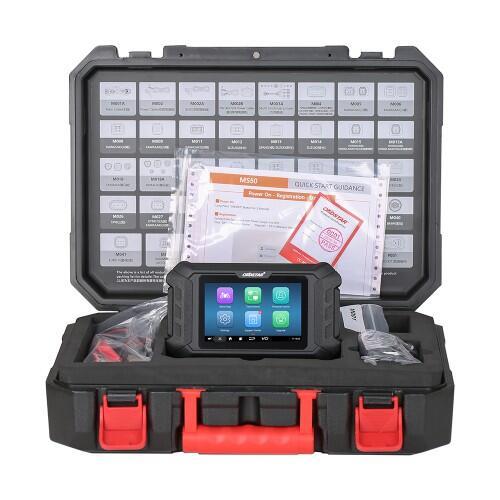

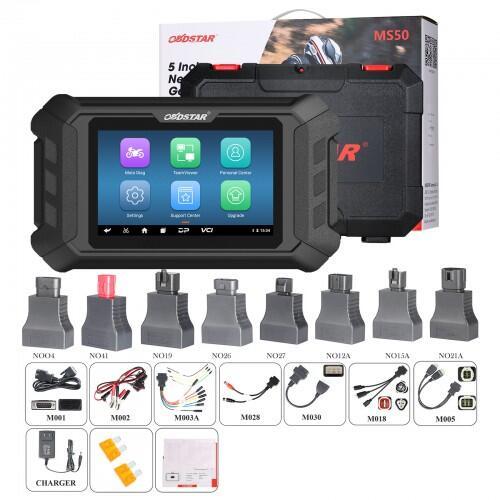

Package includes:
1pc x M001 Main Cable
1pc x M002 Power Cable
1pc x M003A Multi functional jumper
1pc x M004 APRILIA/DUCATI/HONDA/KTM/PIAGGIO/VESPA/YAMAHA
1pc x M005 KAWASAKI
1pc x M012 SUZUKI
1pc x M015A HONDA/HONDA MONTESA
1pc x M018 YAMAHA
1pc x M019 KTM
1pc x M021 AEON/BENELLI/BENELLI DSK
1pc x M026 SYM
1pc x M027 KYMCO/KAWASAKI
1pc x M028 PGO
1pc x M030 HARTFORD
1pc x M041 EURO V
1pc x 12V2A CHARGER
