Crown RCAN USB CAN Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B
| Lugar de origen | PORCELANA |
|---|---|
| Nombre de la marca | For Crown |
| Número de modelo | Para Crown |
| Cantidad de orden mínima | 1 |
| Detalles de empaquetado | Paquete |
| Tiempo de entrega | 1 día de trabajo |
| Condiciones de pago | T/T, Western Union, Moneygram |
| Capacidad de la fuente | 1000 |
Detalles del producto
| Modelo: | Para la interfaz Crown CAN | Nombre del modelo: | Para Crown |
|---|---|---|---|
| Origen: | China continental | Calidad: | Superior |
| Versión de software: | versión 5.33 | soporta modelos: | Todas las carretillas elevadoras |
| Nombre: | para herramienta de diagnóstico de la corona | Tipo de artículo: | Cables y conectores de diagnóstico para automóviles |
| herramienta de diagnóstico automotriz: | Para la interfaz RCAN-USB CAN de la corona | Versión de hardware: | Para Pcan Crown CAN |
| Llave: | Herramienta de escaneo de carretillas elevadoras | Clave 1: | Software de reparación de la corona |
| Nombre del artículo: | Para la herramienta de diagnóstico de la corona Pcan | Clave 2: | Manual de reparación Catálogo y servicio de piezas de corona |
| Nombre de la marca: | Auto Forklift for Crown Scan tools | ||
| Resaltar: | Version 5.33 Forklift Diagnostic Tool,ISO 11898-2 Crown RCAN USB CAN Interface,CAN Specifications 2.0A and 2.0B Crown Forklift Scanner |
||
Descripción del Producto
Forklift Coach Lift-Truck Truck Diagnostic Tool Crown Rcan Pcan USB Can Diagnostic Cable For Toyota Crown Peak System
|

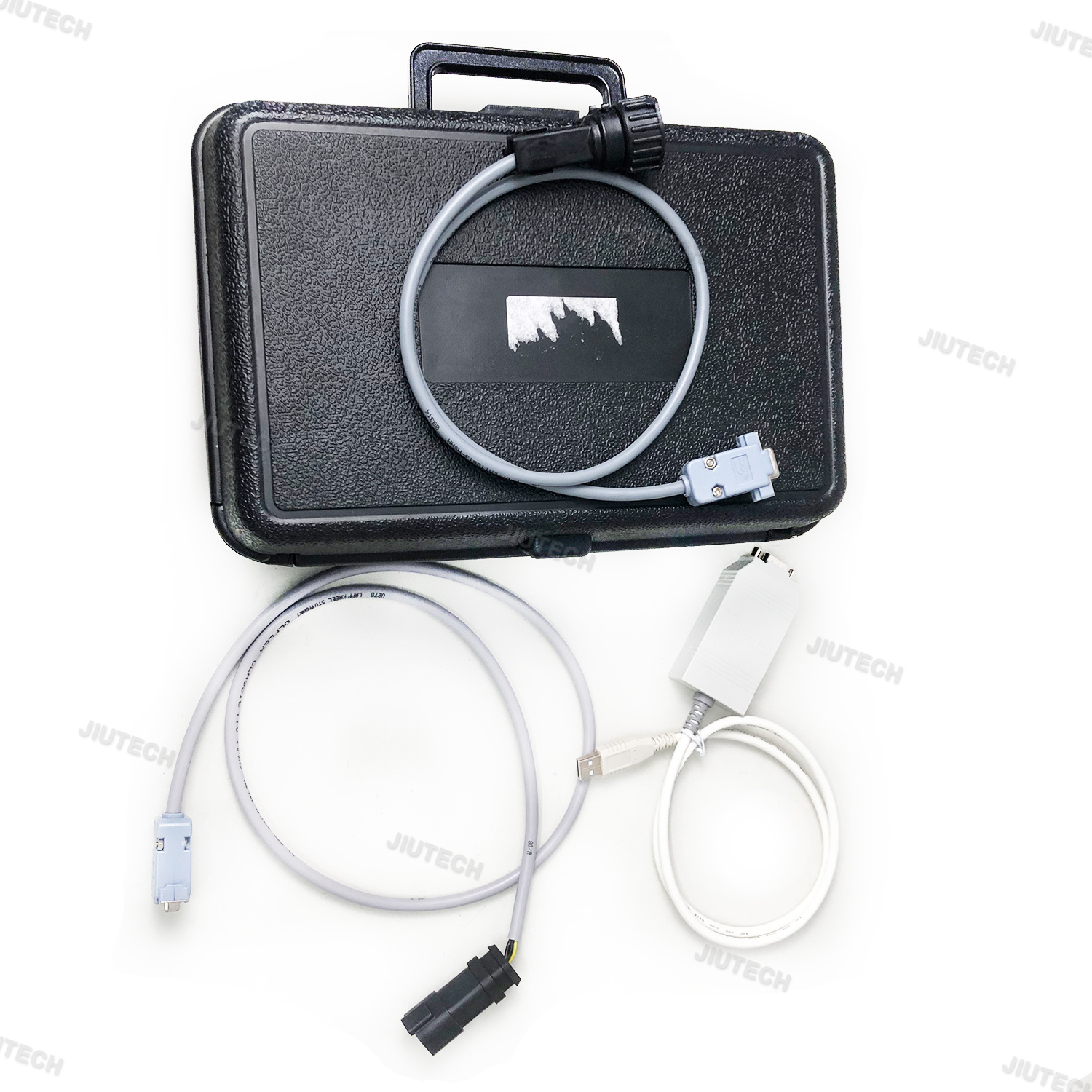

Package List : |
|
1* Crown USB adapter |
|
1* Can cable |
|
1* cd diagnostic software |
Please Note: if you need repair manual need to be purchased separately
supports models:All crown forklifts
Description:
The PCAN-USB adapter enables simple connection to CAN networks. Its compact plastic casing makes it suitable for mobile applications.
The opto-decoupled version guarantees galvanic isolation of up to 500 Volts between the PC and the CAN side.
The package is also supplied with the CAN monitor PCAN-View for Windows and the programming interface PCAN-Basic.
Technical Specifications :
Adapter for the USB connection (Full-Speed mode, compatible with USB 1.1, USB 2.0, and USB 3.0)
High-speed CAN connection (ISO 11898-2)
Bit rates from 5 kbit/s up to 1 Mbit/s
Time stamp resolution approx. 42 µs
Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
CAN bus connection via D-Sub, 9-pin (in accordance with CiA 106)
N-XP SJA1000 CAN controller, 16 MHz clock frequency
N-XP PCA82C251 CAN transceiver
Galvanic isolation on the CAN connection up to 500 V (only for IPEH-002022)
CAN termination can be activated through a solder jumper
5-Volt supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter
Voltage supply via USB
Extended operating temperature range from -40 to +85 °C (-40 to +185 °F)We also have other forklifts: linde , still, yale hystre, cat, mitsubishi, judit
Can be installed in a computer
The following is the installed interface diagram:
