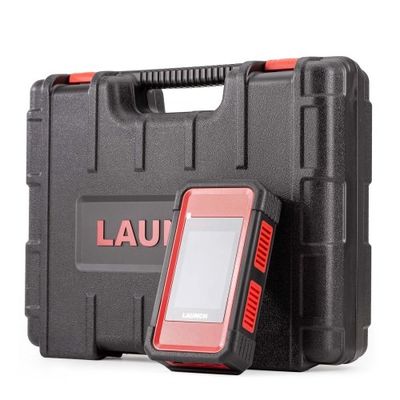

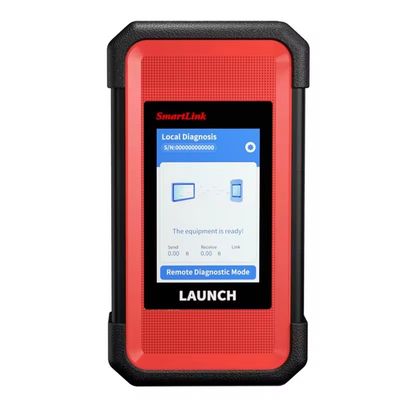

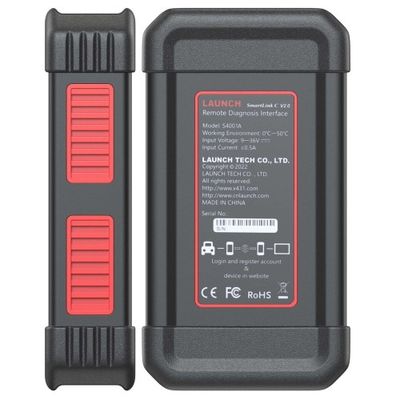

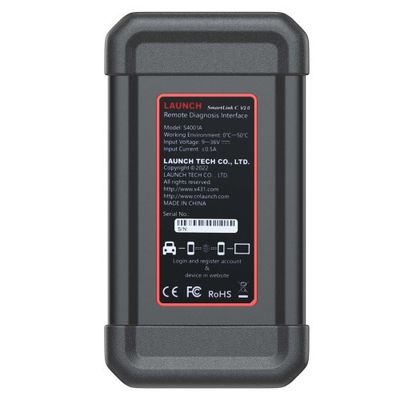

Launch X431 SmartLink C V2.0 – Remote Diagnostic Device ( Vehicle Data Link Connector )

  • Launch X431 SmartLink C V2.0 – Remote Diagnostic Device ( Vehicle Data Link Connector )
  • Launch X431 SmartLink C V2.0 – Remote Diagnostic Device ( Vehicle Data Link Connector )
  • Launch X431 SmartLink C V2.0 – Remote Diagnostic Device ( Vehicle Data Link Connector )
  • Launch X431 SmartLink C V2.0 – Remote Diagnostic Device ( Vehicle Data Link Connector )
  • Launch X431 SmartLink C V2.0 – Remote Diagnostic Device ( Vehicle Data Link Connector )
  • Launch X431 SmartLink C V2.0 – Remote Diagnostic Device ( Vehicle Data Link Connector )
Lugar de origen China
Nombre de la marca LAUNCH X431
Número de modelo para LAUNCH X431 SmartLink C 2.0
Cantidad de orden mínima 1
Precio $599
Detalles de empaquetado 44cm*38cm*14cm /4,6KG
Tiempo de entrega 1 día de trabajo
Condiciones de pago Términos de pago
Capacidad de la fuente 1000

Éntreme en contacto con gratis las muestras y los vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Nombre del modelo para LAUNCH X431 SmartLink C 2.0 Origen China continental
Calidad Superior Características especiales Bluetooth, Wi-Fi y mucho más.
Voltaje HD SmartLink C 2. ¿ Qué es esto?0 OEM NO. Módulo para Camiones de Servicio Pesado LAUNCH X431 SmartLink C 2.0
Las características 1 Trabajar como una VCI (Interfaz de Comunicación del Vehículo) Características 2 Trabajar como un dispositivo local J2534 PassThru
Características 3 Trabajar como un dispositivo remoto J2534 PassThru Soporte 1 Diagnóstico de fallas del sistema completo
Soporte 2 Cumplir con CAN/DOIP/CAN FDIJ2534 Apoyo 3 Lectura de código, Limpieza de código
Apoyo 4 Lectura del flujo de datos
Resaltar

Vehicle Data Link Connector Launch X431

,

Launch X431 SmartLink C V2.0 Diagnostic Device
Deja un mensaje
Descripción de producto

Product Description

  1. Compatible with LAUNCH tools, OE tools or any other diagnostic tools
  2. Support more advanced protocols like J2534, DoIP, CAN FD, CAN 2.0, RP1210, D-PDU
  3. Publish request and accept offer from Launch Super Remote Diagnosis Reservation Platform
  4. SmartLink can be used not only remote diagnosis but also local diagnosis by working with LAUNCH intelligent diagnostics

Launch SmartLink C V2.0 Remote Diagnosis Device

The SmartLink Remote Diagnostics System is a newly developed powerful service system dedicated to remote vehicle diagnosis and service. In this system, SmartLink B (Business), as a SmartLink Service Provider, can accept remote repair orders issued by SmartLink C users via SmartLink Service Platform.

Launch X431 SmartLink C Features

1. Compatible with LAUNCH tools, OE tools or any other diagnostic tools
2. Support more advanced protocols like J2534, DoIP, CAN FD, CAN 2.0, RP1210, D-PDU
3. Publish request and accept offer from Launch Super Remote Diagnosis Reservation Platform
4. SmartLink can be used not only remote diagnosis but also local diagnosis by working with LAUNCH intelligent diagnostics

Requires Activation card

SRDs SmartLink:
Super Remote Diagnosis Solution:
SRDs is comprised of SmartLink C, SmartLink B and Cloud Platform.
The SmartLink C can be connected to the vehicle, and the SmartLink B can be connected with any diagnostic device.
The remote diagnosis will be carried out on the SmartLink platform.

Launch X431 SmartLink C Service Platform:
SmartLink Platform is used to pair the connection between SmartLink C and SmartLink B operated with the internet browser.

SmartLink C user can post the remote diagnosis request on this platform. SmartLink B user can see the requests from their clients and accept the request to do the remote diagnosis.

How Does the LAUNCH SMARTLINK REMOTE DIAGNOSIS WORK?
This picture may help you better understand the complete procedure of the Smartlink remote diagnosis.
Launch X431 SmartLink C V2.0 – Remote Diagnostic Device ( Vehicle Data Link Connector ) 0

LAUNCH X431 SMARTLINK C TECHNICAL PARAMETERS

  • 3.97“ Single-Touch Screen, 320 x 480
  • Working Voltage: DC 9V ~ 36V
  • Communication method: Ethernet
  • Type B USB 2.0
  • Storage: 8GB
  • Memory: 256M
  • Power Consumption: < 6W
  • Working temperature: -10°C ~ 50°C
  • Storage temperature: -20°C ~ 60°C
  • Storage humidity: 10% ~ 90%
  • Dimension: 204 x 110 x 45 mm
Launch X431 SmartLink C V2.0 – Remote Diagnostic Device ( Vehicle Data Link Connector ) 1

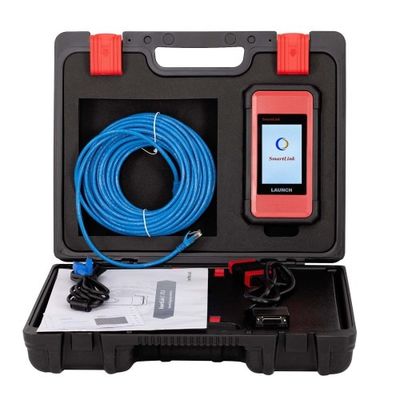

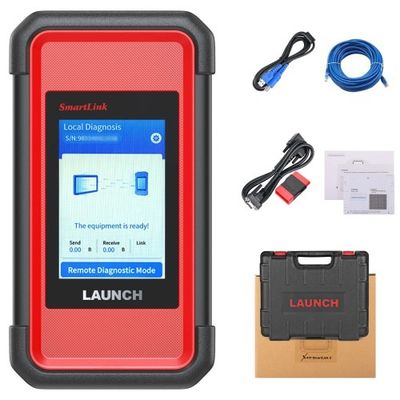

Launch X431 SmartLink C Packing List:

The following accessory items are for reference only. For detailed items, please consult with a local agency or check the packing list supplied with the device.

SmartLink C Dongle – For SmartLink Service Provider
OBD II Extension Cable – Connects the dongle to the VCI of the compatible diagnostic tool
CAT-6 Crossover Cable – Connects the dongle to the network modem
Power Adaptor – Supplies power to the dongle through an AC outlet.
