THINKCAR Thinkdiag2: Full-System Bidirectional Diagnostic Tool with CAN-FD Protocol | Auto VIN Scan, ECU Coding & 15+ Reset Services

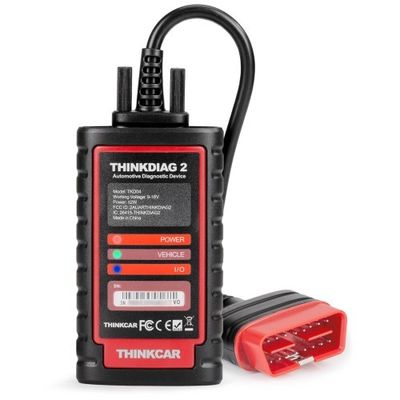

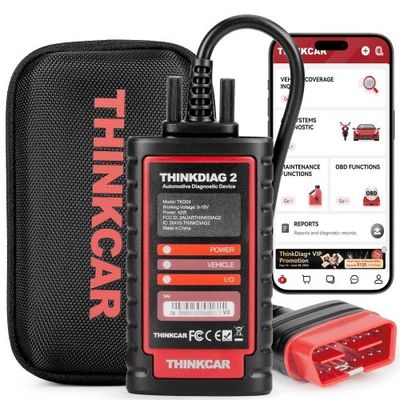

THINKCAR Thinkdiag2 All System Bidirectional Diagnostic Scanner for iOS & Android with CAN-FD Protocol

Thinkdiag2 OBDII code scanner is designed for individual car owners, DIYers, and minor repair shops, which has a separate menu of 15 standard special functions, such as Oil reset, EPB reset, DPF regeneration, SAS calibration, ABS bleeding, injector code, IMMO matching, TPMS reset, etc. Enter from the all-system diagnostic menu to unlock more system special functions and effectively handle the reset and relearn of most cars.

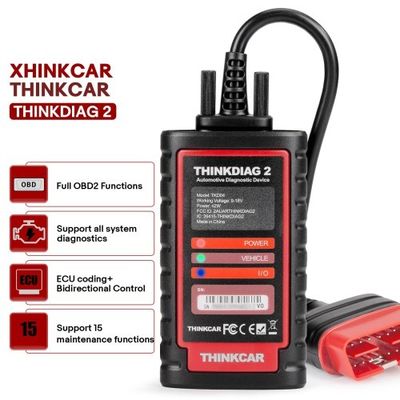

THINKCAR Thinkdiag2 Highlights:

1. Support CAN-FD protocol, add more cars
2. ECU coding + Bi-Directional/Active test
3. Full system diagnostic + 15 maintenances
4. Adaptation + IMMO Key Matching + Auto VIN
5. Covers 98% of car models available in the market
6. Support 12+ languages
7. One Year Free Update Online,after 1 year, update fee 70USD (if you don't renew it, you can only use the basic OBDII full function)
8. THINKDIAG2 VEHICLE COVERAGE INQUIRY



Thinkdiag2 is the upgraded version of Thinkdiag car code reader/automotive scanner.

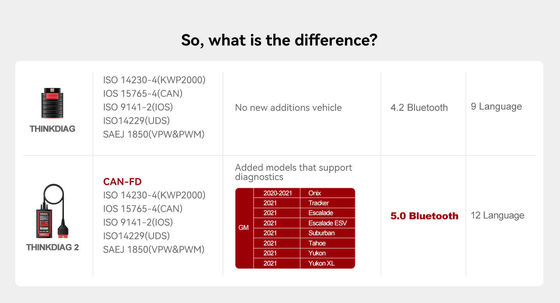

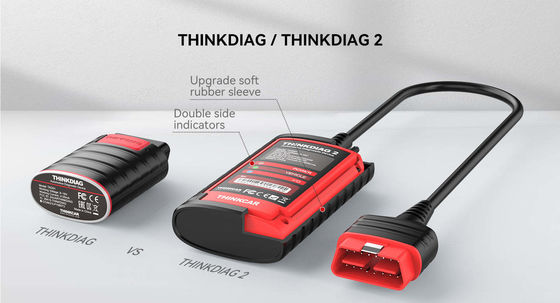

Thinkdiag vs Thinkdiag 2

The most significant difference between thinkdiag and thinkdiag2 is CAN FD protocols. Thinkdiag2 has a built-in CAN FD protocol. It is the only product in this price range that is compatible with CAN-FD protocol and supports the latest GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products, and reduces the risk of undetected errors to enhance the user experience significantly. CAN-FD protocol supports the GM vehicles manufactured after 2020. The CAN-FD protocol uses a higher-performance CRC algorithm, which reduces the risk of undetected errors to a large extent. The CAN-FD protocol can accommodate more data from 8 to 64 bytes in a CAN frame, with relatively less system overhead, and can support better data throughput when sending larger data objects, making the software simpler and more efficient. Not only does it provide shorter CAN frames while increasing the bit rate, but this also has the advantage of shorter latency, more accuracy, better real-time performance, and higher bandwidth.




Thinkdiag2 Functions:

ECU Coding (Customize)

Uses the ThinkDiag 2 App to modify the adaptive data for vehicle control modules after repairs or replacements of vehicle parts, including: Power Window | Illuminated Entry | Warning | Light Control | Slide Roof | Air Conditioner | Display | Unit Conversion | Entry & Start | PSD & PBD Operation | Seat

Active Test (Best bidirectional scan tool)

Uses the ThinkDiag 2 App to test if the actuator is standard, without using the vehicle’s controls, to get a significant boost in effectiveness: Turn on the radiator fan | Modulate the throttle | Open/close windows | Operate mirrors | Turn on/off the lights | Turn on/off the sound horn | Test door lock …

Scan Tool to Reprogram Keys

Based on continuous innovation, Thinkdiag 2 perform IMMO functions, such as Key Learning, Remote Control Learning, Remote Control Add, etc. It can perform Programming, accessing the key chips, reading, retrieving, and writing key information, easy key programming, as well as other key-related functions.

4 Data display in 1 Graph
Thinkdiag 2 will Read the vehicle's live data and present it by graph—an optional combination of multiple data.

Auto Scan Car VIN Code
Thinkdiag 2 can automatically scan the car's information, including VIN, release year, model, and engine type.

Print the vehicles report
Support does an OBD vehicles diagnostic report and prints the vehicles report from PC; it helps you understand the car's problem and lets you know how to repair the car.

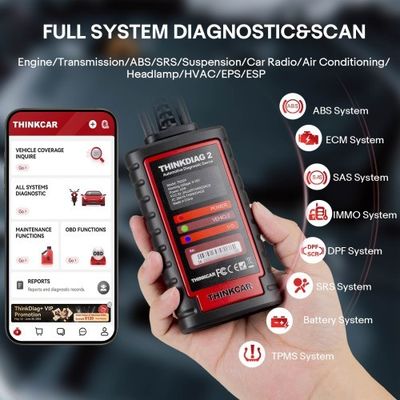

Full System OE level functions
ThinkDiag 2 Enhanced diagnostic scanner can perform OE-level diagnostics on all systems, such as ABS, SRS, Engine, Transmission, Wiper, Seat, EPB, TPMS, Body System, AWD, Door Lock System, Battery, ESP, Parking Sensor, Cruise Control, Instrument, etc.



Support 15+Maintenance Functions

1. Adaptive Front Lighting
2. ABS Bleeding
3. Battery Matching
4. Gearbox Relearn
5. Brake Reset
6. SUS Reset
7. EGR Adaption
8. Electric Throttle Relearn
9. Immobilizer Reset
10. Injector Coding
11. Oil Maintenance Reset
12. Steering Angle Reset
13. Sunroof Reset
14. TPMS(Reset)
15. Air Level Calibration

Note: The maintenance functions that each car can do may be different.

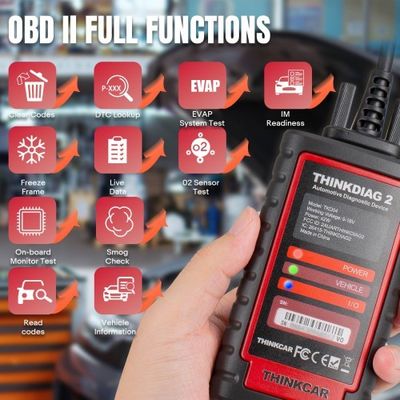

Support 10 OBD2 Full Function

This diagnostic software can test vehicle Engine systems—all models with engines meeting SAE J1850, ISO9241-2, ISO14230-4, and ISO15765 Standards in OBD2&EOBD.

1. View freeze frame date
2. Support graph data stream
3. O₂ Sensor test
4. Evap system test
5. On-Board monitor test
6. Read & Clear DTCs
7. Identify VIN information
8. DTC code lookup
9. Turn off MIL(Malfunction Indicator Lights)
10. I/M Readiness status test

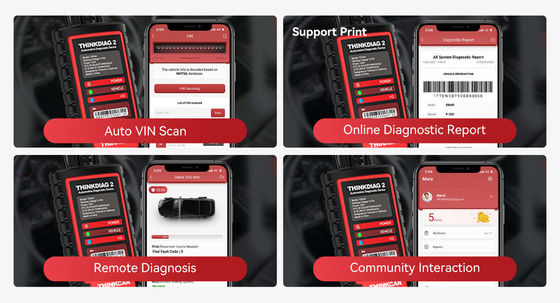

THINKCAR Thinkdiag2 diagnostic scanner has an Auto-VIN function, it can help car owners/repair stores automatically and quickly identify the year of manufacture, model, and VIN of most models, then enter the vehicle diagnostic menu. Then you can click 'Health Report' for a complete vehicle system scan, automatically generating a detailed vehicle health report after diagnosis. Reports and diagnostic records can be viewed in the REPORT and HISTORY menu, and reports can be shared and printed.



What's More?

1. Auto Detect car in 10 seconds
2. Support printed car health report
3. Remote Diagnosis
4. Community support
5. Support ISO and Bluetooth, and Android

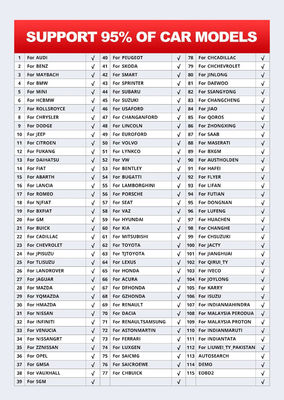

THINKCAR THINKDIAG 2 Cover 120+ Car Brands, and Counting

For OBDII diagnostics, the obd2 code reader works great for most cars built in 1996 or later, being compatible with following protocols:

-ISO 14230-4 (KWP2000)
-ISO 15765-4 (CAN)
-ISO 9141-2 (iso)
-ISO 14229 (uds)
-SAE J1850 (VPW & PWM)

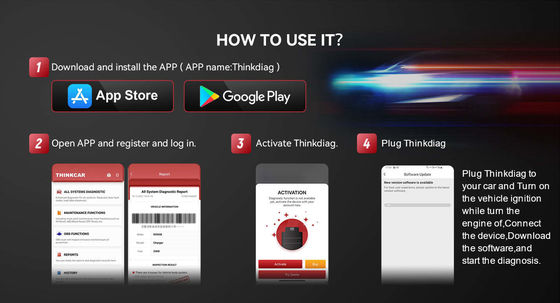

How to operate ThinkDiag 2 when you get it?

Step 1: Download ThinkDiag App from Google play (android obd2 scanner)/ App store (obd2 scanner bluetooth iphone)
Step 2: Register & Login
Step 3: Active Thinkdiag 2 ( the serial number is in the back of Thinkdiag 2 , the password is in the white sticker in manual book )
Step 4: Go to download All softwares
Step 5: Connect Thinkdiag 2 to car , go to read the VIN , it will diagnose!



ThinkDiag 2 Parameter :

Support system: Android & IOS
Bluetooth: Hardware supports 5.0BLE, Bluetooth dual mode
Diagnostic interface: DB15
Working voltage: 12V
Working temperature: -10℃~50℃
Storage environment: ﹣20-60℃
Overall size: 120.5mm*65mm*29mm
Shell material: ABS+PC+TPU rubber sleeve
Lenth of obd Cable : 0.65 meter

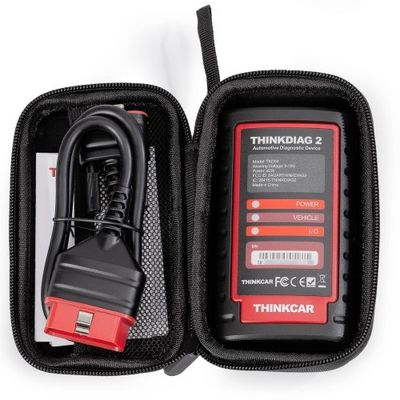

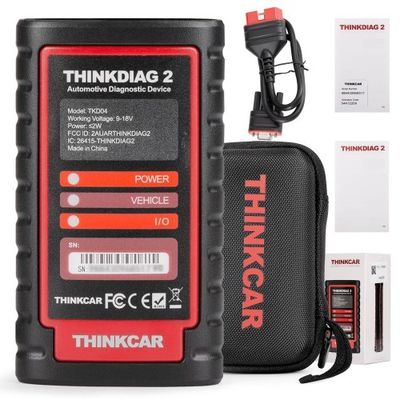

Package Includes:

1 pc x Thinkdiag2
